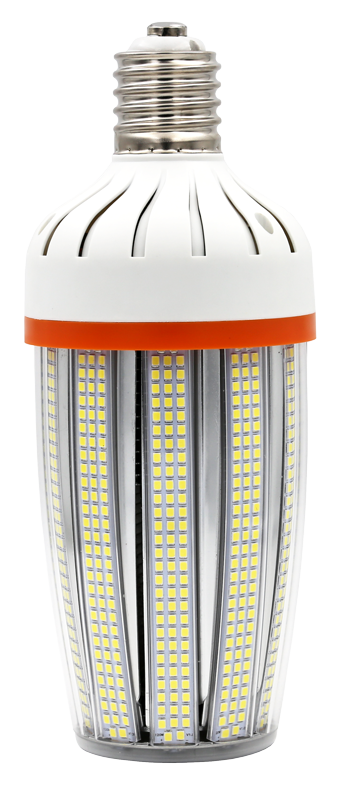

Advanced LED Lamp

The ADVANCED LED LAMP available with internal or external ballast is the perfect alternative for HQL-, HQI- and NAV- lamps. It is characterized with high luminous efficiency and reliability as well as low maintenance requirements.
Savings in energy consumption of up to at least 50% in comparison to conventional illuminants will be reached due to remarkably higher efficiency in combination with high color rendering. Nevertheless the illumination of environment will not be affected.
The ADVANCED LED LAMP is also marked with low payback periods. Depending on energy costs and operating hours, the investment will be amortised within one or two years approximately, including maintenance cost the payback period will be even significantly shorter.

Easy installation in old HighBay lights

80 Watt version
TECHNICAL DATA

  • Wattage
    80 Watt
  • Driver manufacturer
    Meanwell
  • Luminous flux
    10.400 lm
  • Efficiency
    130 lm/W
  • Color temperature
    2700 - 6000 K
  • CRI
    > 80
  • Base
    E40
  • Voltage
    AC 100 - 277V
  • Dimensions
    ø106 x H260mm
  • Beam angle
    360°
  • Ambient temperature
    -25 °C to +65 °C
  • Life time
    35.000 h
  • Warranty
    5 Year

Replacement for

250W

250W

250W

100 Watt version
TECHNICAL DATA

  • Wattage
    100 Watt
  • Driver manufacturer
    Meanwell
  • Luminous flux
    13.000 lm
  • Efficiency
    130 lm/W
  • Color temperature
    2700 - 6000 K
  • CRI
    > 80
  • Base
    E40
  • Voltage
    AC 100 - 277V
  • Dimensions
    ø106 x H260mm
  • Beam angle
    360°
  • Ambient temperature
    -25 °C to +65 °C
  • Life time
    35.000 h
  • Warranty
    5 Year

Replacement for

250W

250W

250W

120 Watt version
TECHNICAL DATA

  • Wattage
    120 Watt
  • Driver manufacturer
    Meanwell
  • Luminous flux
    15.600 lm
  • Efficiency
    130 lm/W
  • Color temperature
    2700 - 6000 K
  • CRI
    > 80
  • Base
    E40
  • Voltage
    AC 100 - 277V
  • Dimensions
    ø106 x H260mm
  • Beam angle
    360°
  • Ambient temperature
    -25 °C to +65 °C
  • Life time
    35.000 h
  • Warranty
    5 Year

Replacement for

400W

400W

400W

130 Watt version
TECHNICAL DATA

  • Wattage
    130 Watt
  • Driver manufacturer
    Meanwell
  • Luminous flux
    16.900 lm
  • Efficiency
    130 lm/W
  • Color temperature
    2700 - 6000 K
  • CRI
    > 80
  • Base
    E40
  • Voltage
    AC 100 - 277V
  • Dimensions
    ø106 x H260mm
  • Beam angle
    360°
  • Ambient temperature
    -25 °C to +65 °C
  • Life time
    35.000 h
  • Warranty
    5 Year

Replacement for

400W

400W

400W

ADVANTAGES

  • Easy installation
  • Low cost, payback typically in 2 years
  • at least 50% energy savings
  • Low service and maintenance costs
  • 5 years warranty
  • VDE tested

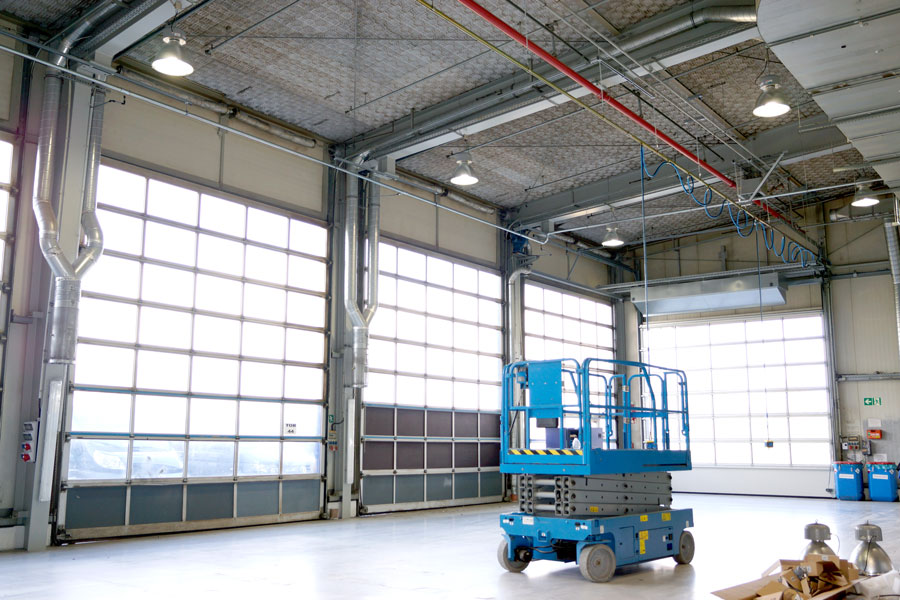

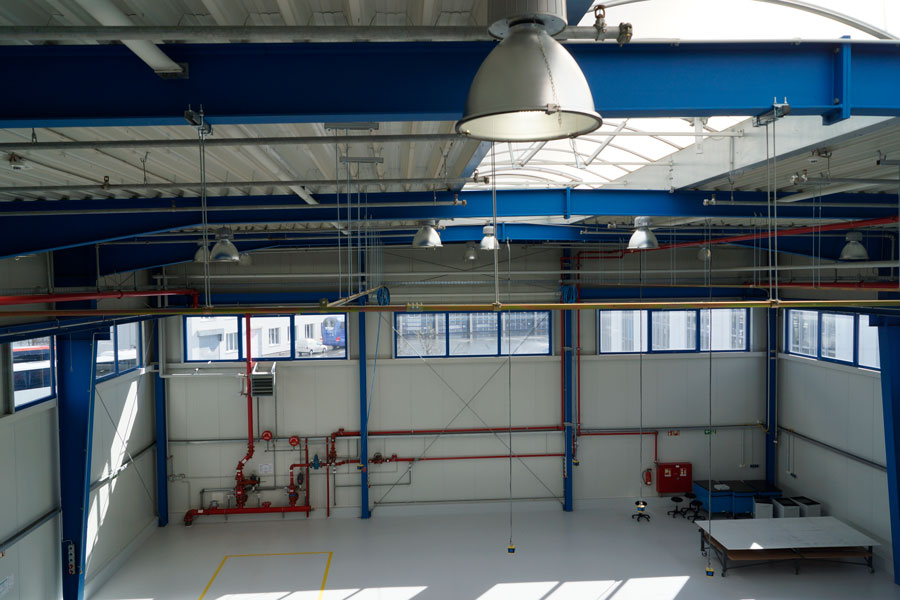

some

Installations

Reduce 400 Watt to 120 Watt

Installation height 8m
Light intensity 350 lx

Reduce 400 Watt to 130 Watt

Installation height 9m
Light intensity 450 lx

Reduce 250 Watt to 80 Watt

Installation height 6,5m
Light intensity 400 lx
